A full width, lower deck Air Cargo Container, both ends angled, commonly used in certified lower hold compartments of 767 and 787 aircraft.
DQF & DQN ULD Air Cargo Containers
High demand applications such as air cargo terminals and commercial airline baggage handling require the highest attention to detail and quality imaginable while providing the safety and security necessary to ensure safe cargo and luggage handling to supply on-time, express delivery. DQF and DQN LD 8 Air Cargo Containers by Granger Aerospace provide innovative industry leading features while offering reduced maintenance costs and lighter tare weights, offering some of the lowest total cost of ownership amongst comparable ULD containers.
Click on any of the thumbnail images below to display the larger image in the LD 8 DQF Container Image Gallery.
LD 8 DQF Air Cargo Container
LD 8 DQF Technical Specifications
Technical Specifications
|
TSO |
|
N/A |
IATA |
|
LD-8/DQF |
NAS Specification |
|
AS 1677 |
Granger Aerospace P/N |
|
GA2-0108-2 |
Base size |
2438 mm x 1534 mm |
96.0 in x 60.4 in |
Height |
1625 mm |
64 in |
Roof length |
3175 mm |
125 in |
Max. gross weight |
2449 kg |
5400 lb |
Internal volume |
6.9 cu m |
244 cu. ft |
Door opening |
2254 mm x 1462 mm |
88.75 in x 57.56 in |
Tare weight from |
116.5 kg |
257 lb |

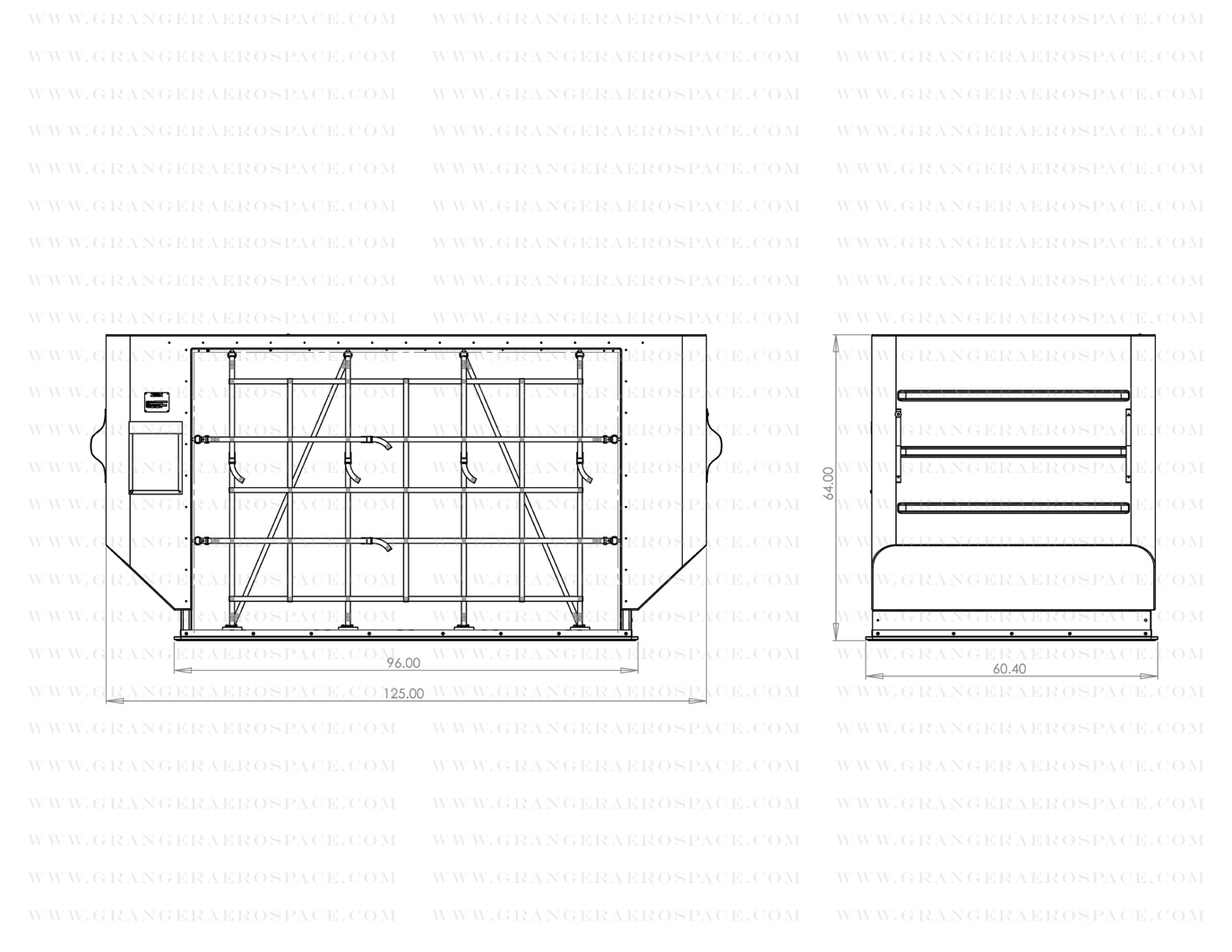

LD 8 DQF Dimensional Drawings
Click below to download LD 8 DQF Dimensional PDF
LD 8 DQF Features:
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-8 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Enhanced Threshold.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It’s our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
Click on any of the thumbnail images below to display the larger image in the LD 8 DQN Container Image Gallery.
LD 8 DQN Air Cargo Container
LD 8 DQN Technical Specifications
Technical Specifications
|
TSO |
|
N/A |
IATA |
|
LD-8/DQN |
SPEC. |
|
AS 1677 |
Granger Aerospace P/N |
|
GA2-0108-3 |
Base size |
2438 mm x 1534 mm |
96.0 in x 60.4 in |
Height |
1625 mm |
64 in |
Roof length |
3175 mm |
125 in |
Max. gross weight |
2449 kg |
5400 lb |
Internal volume |
6.4 cu m |
224.5 cu. ft |
External volume |
7.5 cu m |
265 cu ft |
Door opening |
2254 mm x 1462 mm |
88.75 in x 57.56 in |
Tare weight from |
169.6 kg |
374 lb |
LD 8 DQN Dimensional Drawings
Click below to download LD 8 DQN Dimensional PDF
Granger Aerospace Products Air Cargo Containers are the only cargo container manufactured from a combination of aluminum and durable LLDPE.
The LD-8 Body is weld-able
The Granger Aerospace Products Air Cargo Container is lighter than most standard containers.
Granger Aerospace Products cargo containers are robust.
No aluminum body panels to patch.
No aluminum body frames to replace.
Lighter weight, less down time and lower repair costs equals lower cost of ownership.
Enhanced Threshold.
Fewer fasteners to replace.
Unique design allows for faster repairs.
Less spare parts to keep in stock.
Granger Aerospace Products offers alternative solutions for your ULD needs.
It is our goal to offer our customer not only lower cost container but a trusted partnership for your company.
It is our goal to offer more choices to our customers
Through or focus on technology and research, we are continually making improvements to our design.
Our customers save fuel by using robust as well as cost-efficient lightweight containers.
LD 8 Air Cargo Container Links
LD 8 DQF/DQN Information
Click below to download LD 8 DQN Technical PDF
